Phones, codecs and WebRTC in one single interface
ALL-SOFTWARE PHONE SYSTEM
CLOUD BASED OR ON PREMISE
ALL PHONE LINES TECHNOLOGIES
SIP VOIP / ISDN / POTS
ALL CODECS
OPUS – G722 – G711
ALL CONSOLE AUDIO TECHNOLOGIES
AES67 – AES3 – LIVEWIRE
WHEATNET IP – ANALOG
ALL SIP PHONES
ALL SIP-ENABLED HARDWARE CODECS
MULTI-STUDIO / MULTI-SITES
WEBRTC
COMPLETE SOFTWARE SUITE
NEOSCREENER
CALLS
NEOWINNERS: GIVE-AWAYS & LIVE READS
NEOAGENT: WEBSITES & SMS
Replace your existing phone hybrids, guests links and remote journalist codecs with a single system
Diagram
Features
Configuration
NeoScreener
Compatibility
Awards
Diagram
NeoSIP includes a free NeoScreener Lite Version.
Features
- NeoSIP interfaces with FreePBX systems (Asterisk – Open Source), providing:
- IVR
- Extensions
- Conferences
- Queues
- Call recording
- VM
- Trunks
- SIP accounts
- Failover routes
- And many more IPBX functions.
- Asterisk supports any telephone line technology:
- VOIP
- SIP (& RTP)
- Secured SIPs (& RTPs)
- ISDN
- Analog.
- NeoSIP supports any Windows Audio Driver for linking to mixing consoles:
- AOIP (AES67 / LiveWire / WheatnetIP / Dante / Ravenna)
- AES3
- Analog
- Up to 128 audio channels (faders) per system.
- All audio channels support
- Mix-minus
- NR – Noise reduction
- AGC – Automatic gain control
- EC – Echo cancelation
- Unlimited “lines” (simultaneous communications)
- Unlimited “studios” (groups of audio channels of any type)
- Unlimited “shows” (groups of lines, following DIDs)
- Direct internet (free) HD audio for registered journalists / guests.
- Supported codecs: HD OPUS 48khz, g722, g711 (pstn), g729 and any Asterisk supported codec.
- Supports communications encrytions.
- Supports physical external codecs: Tieline, AEQ, Comrex, AVT, AETA.
- Supports any SIP standard application: MicroSIP, Bria, Zoiper, Linphone, etc.
- Supports any SIP physical phone (Yealink, Cisco, Mitel etc.)
- Supports WebRTC (send a web link to Guest, and his browser does the link to studio, no app install needed)
- Totally modular setup:
- FreePbx
- NeoSIP (Windows service or Linux daemon)
- NeoSIP Remote Audio Engine (Windows – channels can be brought closest to the mixing console)
- Everything in the cloud, or on premise, on separate machines or on one single machine.
- Example: FreePBX (Asterisk) & NeoSIP in the cloud with:
- 1 remote audio engine at Studios at address 1 – 8 channels across 4 studios AES67
- 1 remote audio engine at an Outside Brodcast Venue (calls delay reduced) – 1 channel on a R0decaster
- 1 remote audio engine at the DR site – 4 channels on an AudioScience card.
- 1 remote audio engine at address 2 across the city, or even on the other side of the country. – 4 channels across 4 studios in AES3.
- NeoScreener call screening
- NeoWinners promo management
- NeoAgent website and SMS into NeoScreener
- Able to transfer calls across studios & sites & audio technologies in a single click
- Able to load phone lines in several studios, even across sites.
- Screen calls remotely with HD for any studio.
- Use a central database of calls, even across sites.
- Drop-in panel for consoles.

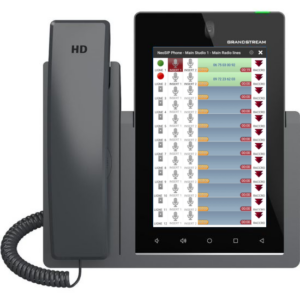

- Separate phone set available.
Configuration
NeoSIP Configuration provides configuration and monitoring of NeoSIP modules & services
NeoScreener
More information on NeoScreener
NeoScreener is a software application to handle telephone calls and codecs, during Live Call-in Shows and Contests. NeoSIP comes with a free limited version of NeoScreener that allows to handle calls.
Compatibility
NeoSIP has been tested with the following devices / SIP applications :
AUDIO INTERFACE TO BROADCAST MIXING CONSOLES
- Dante Virtual Sound Card. 8 WDM channels.
- Dante Virtual Sound Card -> Sonifex AVN-A series for Analog or AES3, up to 16 channels.
- AES3 : AVN-AESIO8 8 AES3 Input, 8 AES3 Output Dante® Interface, PoE
- Analog : AVN-AIO8 8 Input, 8 Output Dante® Interface, PoE
- Wheatstone WheatNet-IP Windows WDM driver, up to 24 channels.
- Digigram ALP series cards
⦁ ALP-DANTE up to 32 channels
⦁ ALP-AES67 up to 32 channels & SMPTE 2110-30 SMPTE 2202-7 - Axia Livewire Windows WDM driver, up to 24 channels.
- R0decaster Pro II USB driver, up to 3 channels. (Rodecaster)
Any other Windows WDM audio device should be supported.
CODECS
- Tieline
- Tieline BRIDGE-IT
- Tieline VIA
- AEQ Phoenix Mercury
APPLICATIONS
- MicroSIP (Windows)
- Bria (Android, iOS)
- Zoiper (Windows, Mac OS, Linux, Android, iOS)
- X-lite (Windows)
- Telephone (MacOS, application from company 64 characters)
- Linphone(Windows, Mac OS, Linux, Android, iOS)
Awards
NeoSIP has received two Best of Show Awards at IBC 2023, for its innovative approach to contributions and phone calls integration
